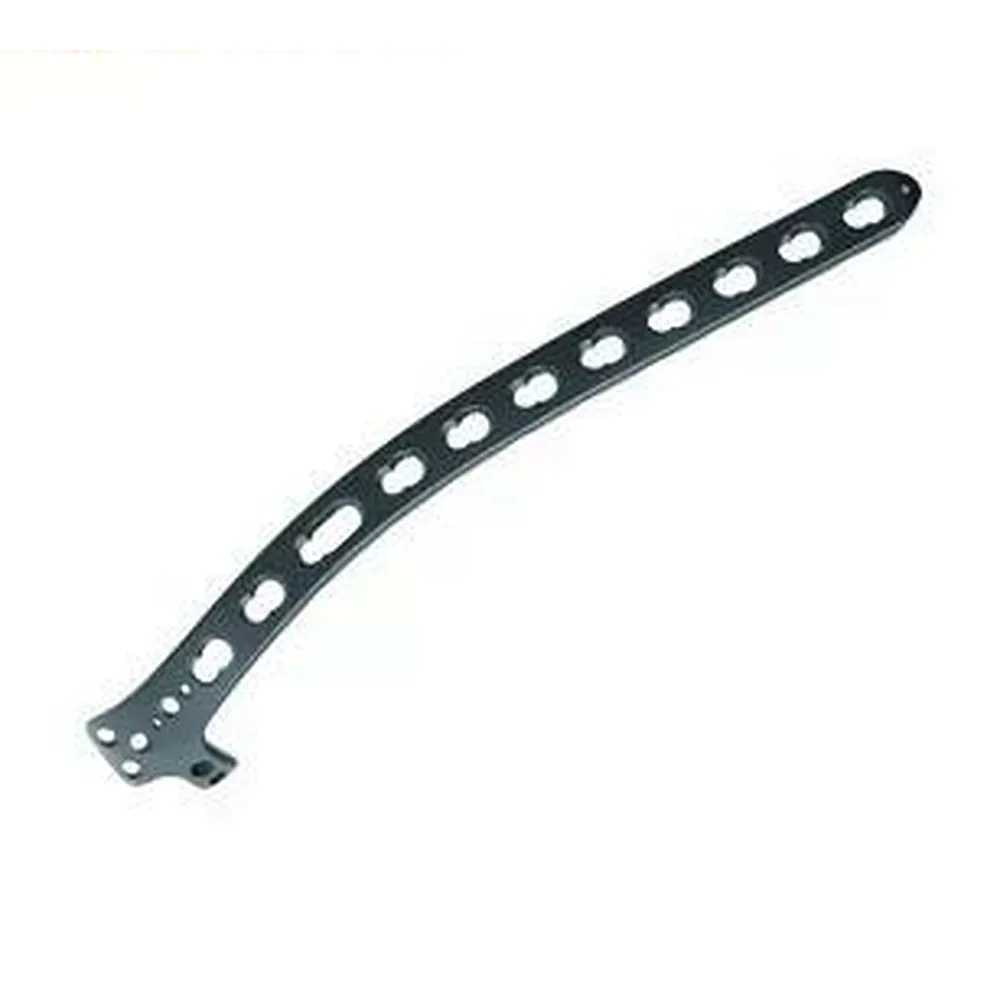

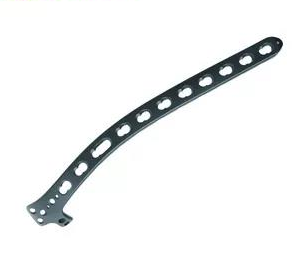

Distal Humeral Lateral Locking Plate(With Support)
0016
Quantity
| Name and Screw | Code | Specification | W/mm | T/mm | L/mm |
| Distal Humeral Lateral Locking Plate(With Support) Head: HC 2.4/2.7 Body: HC 3.5,HA 3.5,HB 4.0 | 251712031 | 3Holes, L | 11.2 | 3 | 64 |
| 251712041 | 4Holes, L | 11.2 | 3 | 77 | |
| 251712051 | 5Holes, L | 11.2 | 3 | 90 | |
| 251712061 | 6Holes, L | 11.2 | 3 | 103 | |
| 251712071 | 7Holes, L | 11.2 | 3 | 116 | |
| 251712081 | 8Holes, L | 11.2 | 3 | 129 | |
| 251712091 | 9Holes, L | 11.2 | 3 | 142 | |
| 251712101 | 10Holes, L | 11.2 | 3 | 155 | |
| 251712111 | 11Holes, L | 11.2 | 3 | 168 | |
| 251712032 | 3Holes, R | 11.2 | 3 | 64 | |
| 251712042 | 4Holes, R | 11.2 | 3 | 77 | |
| 251712052 | 5Holes, R | 11.2 | 3 | 90 | |
| 251712062 | 6Holes, R | 11.2 | 3 | 103 | |
| 251712072 | 7Holes, R | 11.2 | 3 | 116 | |
| 251712082 | 8Holes, R | 11.2 | 3 | 129 | |
| 251712092 | 9Holes, R | 11.2 | 3 | 142 | |
| 251712102 | 10Holes, R | 11.2 | 3 | 155 | |
| 251712112 | 11Holes, R | 11.2 | 3 | 168 |
